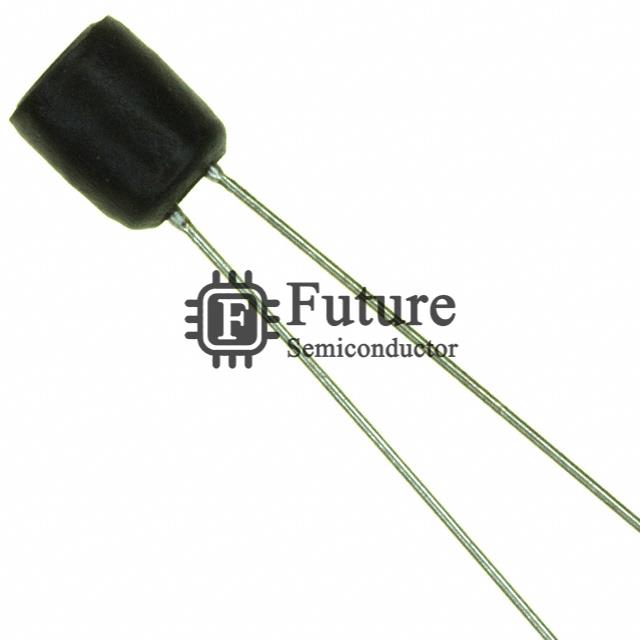

Murata Power Solutions Inc. 22R156C

Name: 22R156C
Brand: Murata Power Solutions Inc.
SKU: 22R156C
Price: 0.672 USD
Availability: InStock
Rating: 4.7 (457 reviews)

MFG Part Number: 22R156C

Available Quantity: 65960 Pieces

Reference Price: USD 0.672

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Murata Power Solutions Inc.

Brief Description: 2200R FIXED Inductors 15MH 54MA 51.7 OHM TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 22R156C.pdf

Request Quotation for 22R156C

Company Name

Contact Person

Phone Number

Address

Email

Message

22R156C Specifications

Manufacturer Part Number	22R156C
Future Part Number	FT-22R156C
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	2200R
22R156C Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	15mH
Tolerance	±10%
Current Rating	54mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	51.7 Ohm Max
Q @ Freq	140 @ 150kHz
Frequency - Self Resonant	510kHz
Ratings	-
Operating Temperature	-25°C ~ 70°C
Inductance Frequency - Test	1kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.413" (10.50mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
22R156C Weight	Contact Us
Replacement Part Number	22R156C-FT
