Home / Products / Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single / 2SK302200L

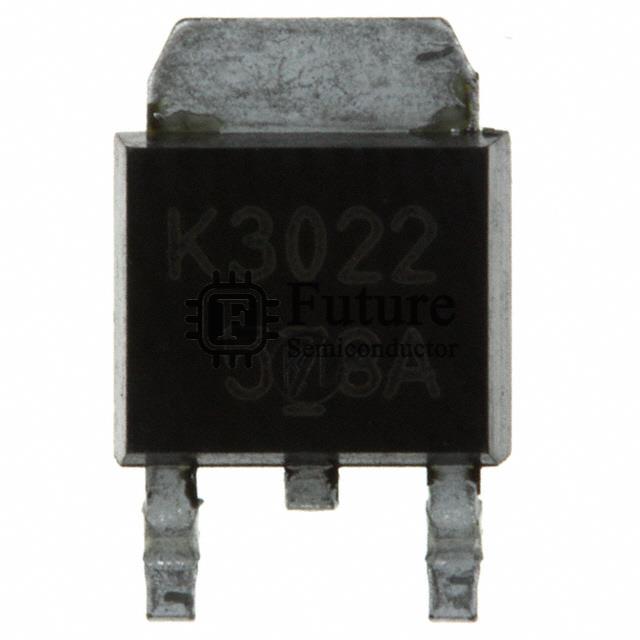

Panasonic Electronic Components 2SK302200L
- MFG Part Number
- 2SK302200L
- Available Quantity
- 48000 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Panasonic Electronic Components
- Brief Description
- - MOSFET N-CH 60V 5A UG-2
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- 2SK302200L.pdf
2SK302200L Specifications
| Manufacturer Part Number | 2SK302200L |
|---|---|
| Future Part Number | FT-2SK302200L |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| 2SK302200L Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 130 mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 220pF @ 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta), 10W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | U-G2 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| 2SK302200L Weight | Contact Us |
| Replacement Part Number | 2SK302200L-FT |
