Home / Products / Relays / Signal Relays, Up to 2 Amps / 3SBC1503A2

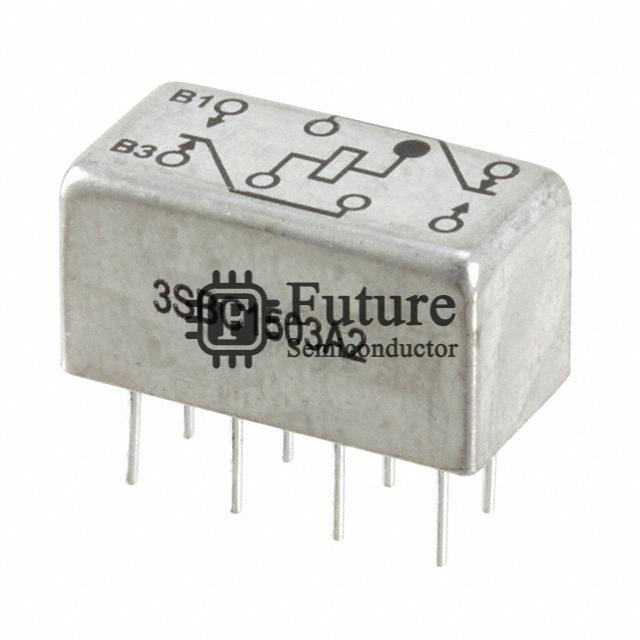

TE Connectivity Aerospace, Defense and Marine 3SBC1503A2

Name: 3SBC1503A2
Brand: TE Connectivity Aerospace, Defense and Marine
SKU: 3SBC1503A2
Price: 168.432 USD
Availability: InStock
Rating: 4.9 (423 reviews)

MFG Part Number: 3SBC1503A2

Available Quantity: 49720 Pieces

Reference Price: USD 168.432

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Brief Description: Military, MIL-R-39016/13, 3SBC, CII RELAY GEN PURPOS DPDT 2A 26.5VDC

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Signal Relays, Up to 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 3SBC1503A2.pdf

Request Quotation for 3SBC1503A2

Company Name

Contact Person

Phone Number

Address

Email

Message

3SBC1503A2 Specifications

Manufacturer Part Number	3SBC1503A2
Future Part Number	FT-3SBC1503A2
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-R-39016/13, 3SBC, CII
3SBC1503A2 Status (Lifecycle)	In Stock
Part Status	Active
Relay Type	General Purpose
Coil Type	Non Latching
Coil Current	19.6mA
Coil Voltage	26.5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2A
Switching Voltage	28VDC - Nom
Turn On Voltage (Max)	13.5 VDC
Turn Off Voltage (Min)	1.5 VDC
Operate Time	4ms
Release Time	4ms
Features	Sealed - Hermetically
Mounting Type	Through Hole
Termination Style	PC Pin
Operating Temperature	-65°C ~ 125°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
3SBC1503A2 Weight	Contact Us
Replacement Part Number	3SBC1503A2-FT
