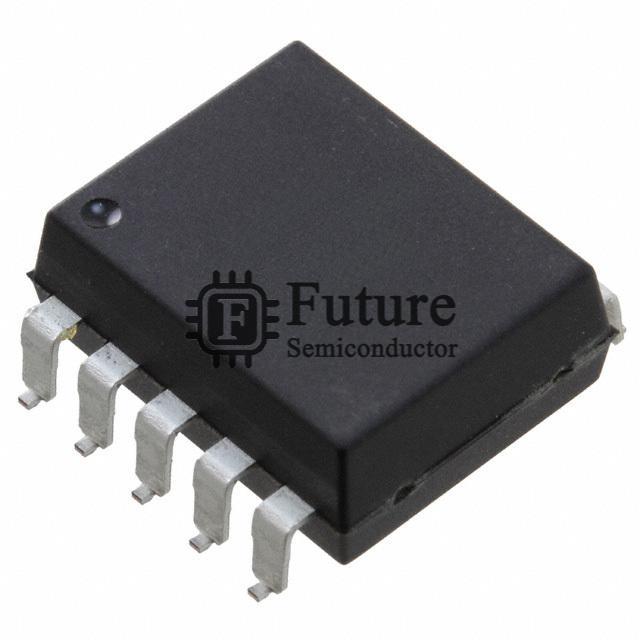

Broadcom Limited ACNV3130-300E

Name: ACNV3130-300E
Brand: Broadcom Limited
SKU: ACNV3130-300E
Price: 2.57488 USD
Availability: InStock
Rating: 4.9 (369 reviews)

MFG Part Number: ACNV3130-300E

Available Quantity: 87670 Pieces

Reference Price: USD 2.57488

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Broadcom Limited

Brief Description: - OPTOISO 7.5KV GATE DRVR 10DIP GW

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Isolators - Gate Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ACNV3130-300E.pdf

Request Quotation for ACNV3130-300E

Company Name

Contact Person

Phone Number

Address

Email

Message

ACNV3130-300E Specifications

Manufacturer Part Number	ACNV3130-300E
Future Part Number	FT-ACNV3130-300E
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
ACNV3130-300E Status (Lifecycle)	In Stock
Part Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Min)	40kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	300ns
Rise / Fall Time (Typ)	100ns, 100ns
Current - Output High, Low	2A, 2A
Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	15V ~ 30V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	10-SMD, Gull Wing
Supplier Device Package	10-DIP Gull Wing
Approvals	CSA, IEC/EN/DIN, UR
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ACNV3130-300E Weight	Contact Us
Replacement Part Number	ACNV3130-300E-FT
