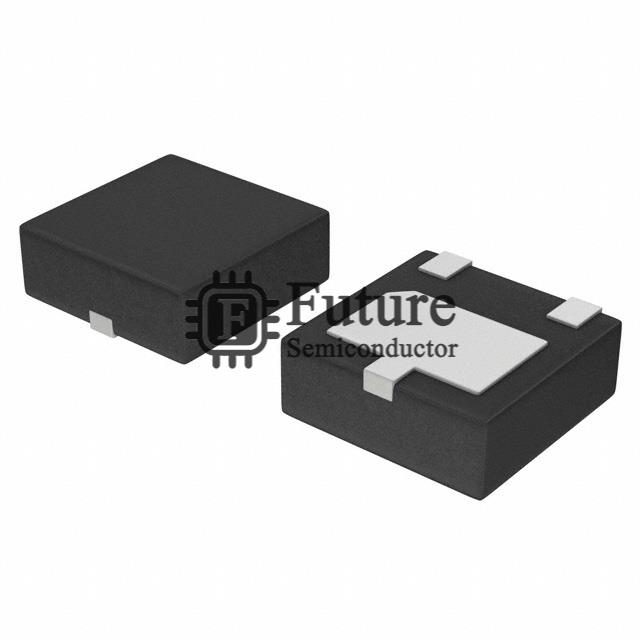

Diodes Incorporated AH9247DNTR-G1

Name: AH9247DNTR-G1
Brand: Diodes Incorporated
SKU: AH9247DNTR-G1
Availability: InStock
Rating: 4.9 (423 reviews)

MFG Part Number: AH9247DNTR-G1

Available Quantity: 96390 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: - MAGNETIC SWITCH OMNIPOLAR 3DFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Magnetic Sensors - Switches (Solid State)

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: AH9247DNTR-G1.pdf

Request Quotation for AH9247DNTR-G1

Company Name

Contact Person

Phone Number

Address

Email

Message

AH9247DNTR-G1 Specifications

Manufacturer Part Number	AH9247DNTR-G1
Future Part Number	FT-AH9247DNTR-G1
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
AH9247DNTR-G1 Status (Lifecycle)	In Stock
Part Status	Obsolete
Function	Omnipolar Switch
Technology	Hall Effect
Polarization	Either
Sensing Range	±4mT Trip, ±3.2mT Release
Test Condition	25°C
Voltage - Supply	2.5V ~ 5.5V
Current - Supply (Max)	15µA
Current - Output (Max)	2mA
Output Type	Digital
Features	-
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	3-WDFN Exposed Pad
Supplier Device Package	3-DFN (2x2)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
AH9247DNTR-G1 Weight	Contact Us
Replacement Part Number	AH9247DNTR-G1-FT
