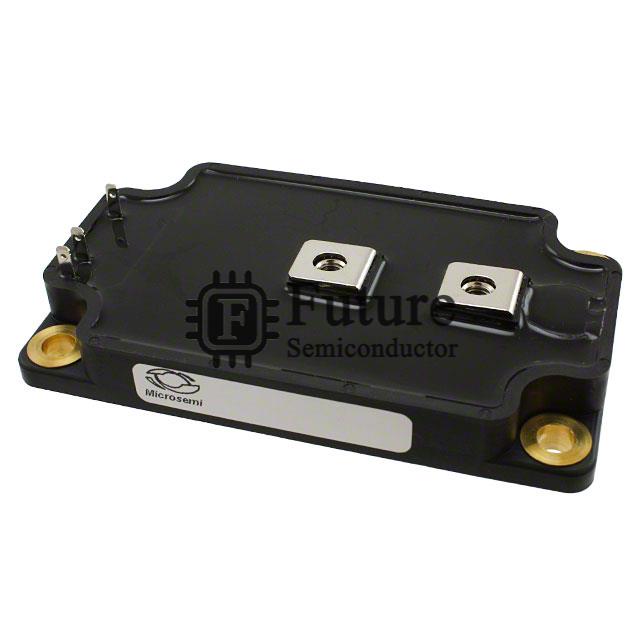

Microsemi Corporation APTM100UM45DAG

Name: APTM100UM45DAG
Brand: Microsemi Corporation
SKU: APTM100UM45DAG
Price: 221.056 USD
Availability: InStock
Rating: 4.8 (714 reviews)

MFG Part Number: APTM100UM45DAG

Available Quantity: 52230 Pieces

Reference Price: USD 221.056

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: POWER MOS 7® MOSFET N-CH 1000V 215A SP6

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: APTM100UM45DAG.pdf

Request Quotation for APTM100UM45DAG

Company Name

Contact Person

Phone Number

Address

Email

Message

APTM100UM45DAG Specifications

Manufacturer Part Number	APTM100UM45DAG
Future Part Number	FT-APTM100UM45DAG
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	POWER MOS 7®
APTM100UM45DAG Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000V
Current - Continuous Drain (Id) @ 25°C	215A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	52 mOhm @ 107.5A, 10V
Vgs(th) (Max) @ Id	5V @ 30mA
Gate Charge (Qg) (Max) @ Vgs	1602nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	42700pF @ 25V
FET Feature	-
Power Dissipation (Max)	5000W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SP6
Package / Case	SP6
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
APTM100UM45DAG Weight	Contact Us
Replacement Part Number	APTM100UM45DAG-FT
