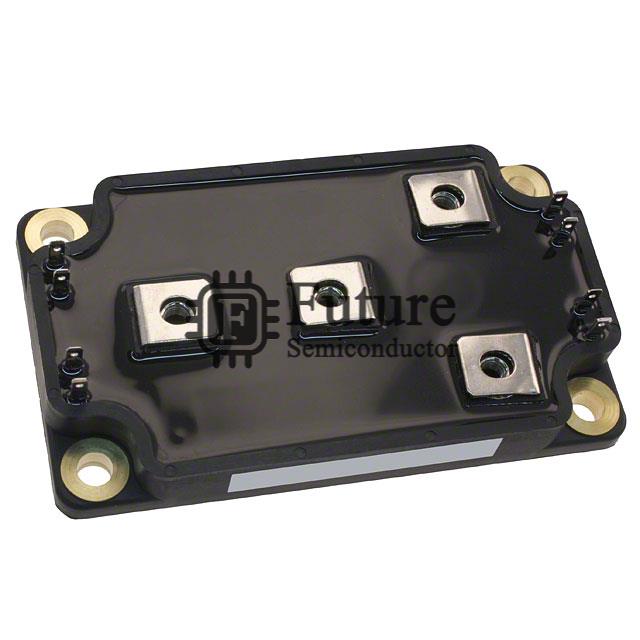

Microsemi Corporation APTM10HM05FG

Name: APTM10HM05FG
Brand: Microsemi Corporation
SKU: APTM10HM05FG
Price: 138.79504 USD
Availability: InStock
Rating: 4.9 (132 reviews)

MFG Part Number: APTM10HM05FG

Available Quantity: 77050 Pieces

Reference Price: USD 138.79504

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: - MOSFET 4N-CH 100V 278A SP6

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: APTM10HM05FG.pdf

Request Quotation for APTM10HM05FG

Company Name

Contact Person

Phone Number

Address

Email

Message

APTM10HM05FG Specifications

Manufacturer Part Number	APTM10HM05FG
Future Part Number	FT-APTM10HM05FG
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
APTM10HM05FG Status (Lifecycle)	In Stock
Part Status	Active
FET Type	4 N-Channel (H-Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	278A
Rds On (Max) @ Id, Vgs	5 mOhm @ 125A, 10V
Vgs(th) (Max) @ Id	4V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	700nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	20000pF @ 25V
Power - Max	780W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
APTM10HM05FG Weight	Contact Us
Replacement Part Number	APTM10HM05FG-FT
