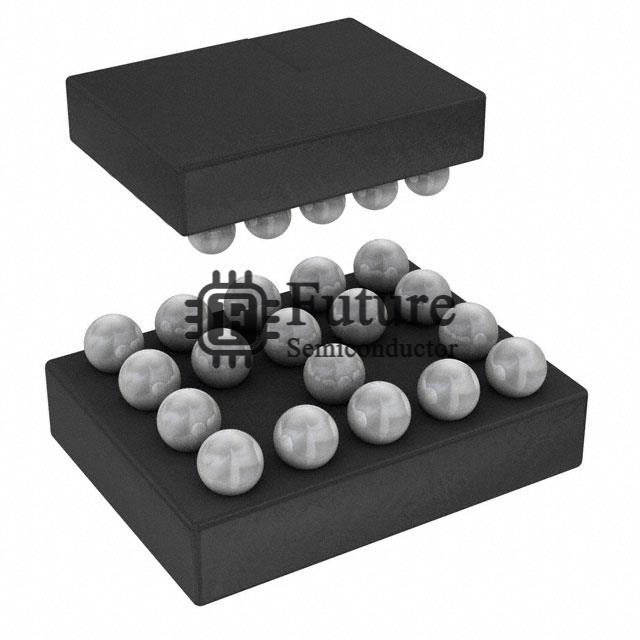

ON Semiconductor CM6317

Name: CM6317
Brand: ON Semiconductor
SKU: CM6317
Availability: InStock
Rating: 4.6 (15 reviews)

MFG Part Number: CM6317

Available Quantity: 59830 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - FILTER RCPI 70 OHM/30PF SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: EMI/RFI Filters (LC, RC Networks)

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CM6317.pdf

Request Quotation for CM6317

Company Name

Contact Person

Phone Number

Address

Email

Message

CM6317 Specifications

Manufacturer Part Number	CM6317
Future Part Number	FT-CM6317
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
CM6317 Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	Low Pass
Filter Order	2nd
Technology	RC (Pi)
Number of Channels	7
Center / Cutoff Frequency	-
Attenuation Value	-
Resistance - Channel (Ohms)	70
Current	-
Values	R = 70 Ohms, C = 30pF
ESD Protection	Yes
Operating Temperature	-40°C ~ 85°C
Applications	Data Lines for Mobile Devices
Voltage - Rated	-
Mounting Type	Surface Mount
Package / Case	18-UFBGA, WLCSP
Size / Dimension	0.077" L x 0.061" W (1.96mm x 1.56mm)
Height	0.025" (0.64mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CM6317 Weight	Contact Us
Replacement Part Number	CM6317-FT
