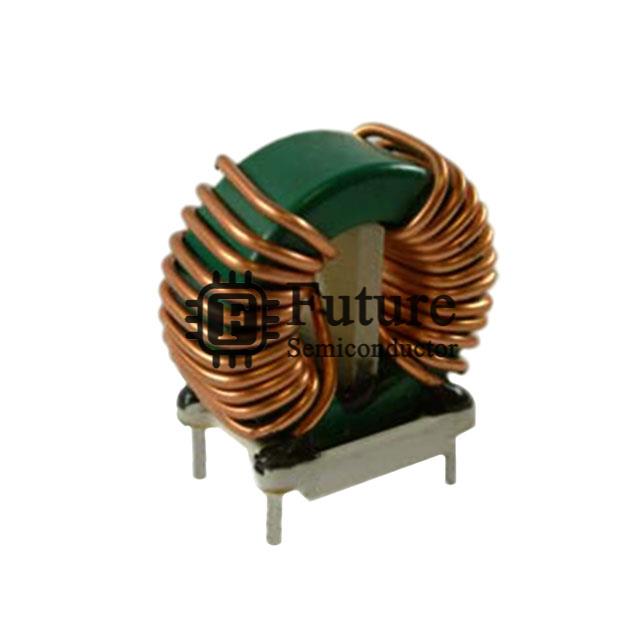

Triad Magnetics CMT-8114-B

Name: CMT-8114-B
Brand: Triad Magnetics
SKU: CMT-8114-B
Price: 4.169488 USD
Availability: InStock
Rating: 4.8 (104 reviews)

MFG Part Number: CMT-8114-B

Available Quantity: 11450 Pieces

Reference Price: USD 4.169488

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Triad Magnetics

Brief Description: CMT CMC 2.5MH 12.5A 2LN TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CMT-8114-B.pdf

Request Quotation for CMT-8114-B

Company Name

Contact Person

Phone Number

Address

Email

Message

CMT-8114-B Specifications

Manufacturer Part Number	CMT-8114-B
Future Part Number	FT-CMT-8114-B
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	CMT
CMT-8114-B Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	-
Inductance @ Frequency	2.5mH @ 1kHz
Current Rating (Max)	12.5A
DC Resistance (DCR) (Max)	11 mOhm
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-55°C ~ 105°C
Ratings	-
Approvals	-
Features	ESD
Mounting Type	Through Hole
Size / Dimension	1.450" L x 0.800" W (36.83mm x 20.32mm)
Height (Max)	1.500" (38.10mm)
Package / Case	Vertical, 4 PC Pin
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CMT-8114-B Weight	Contact Us
Replacement Part Number	CMT-8114-B-FT
