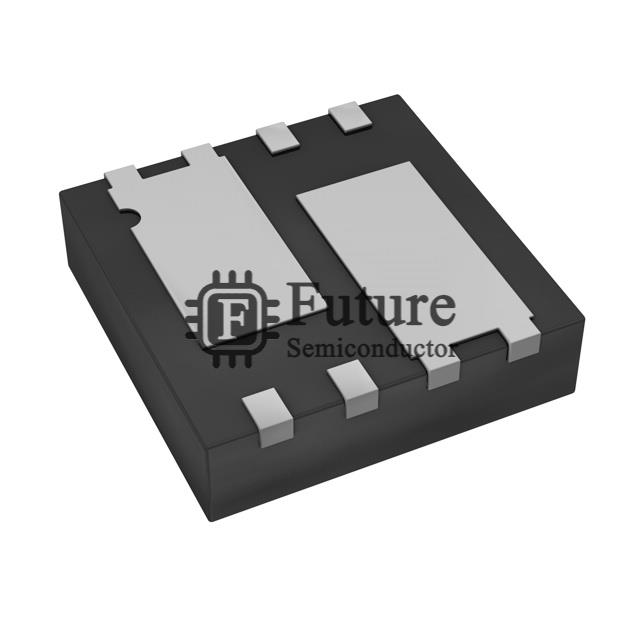

Diodes Incorporated DMN3016LDN-7

Name: DMN3016LDN-7
Brand: Diodes Incorporated
SKU: DMN3016LDN-7
Price: 0.16368 USD
Availability: InStock
Rating: 5.0 (110 reviews)

MFG Part Number: DMN3016LDN-7

Available Quantity: 39260 Pieces

Reference Price: USD 0.16368

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: - MOSFET 2N-CH 30V 7.3A 8VDFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DMN3016LDN-7.pdf

Request Quotation for DMN3016LDN-7

Company Name

Contact Person

Phone Number

Address

Email

Message

DMN3016LDN-7 Specifications

Manufacturer Part Number	DMN3016LDN-7
Future Part Number	FT-DMN3016LDN-7
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
DMN3016LDN-7 Status (Lifecycle)	In Stock
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	7.3A
Rds On (Max) @ Id, Vgs	20 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1415pF @ 15V
Power - Max	1.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	V-DFN3030-8 (Type J)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DMN3016LDN-7 Weight	Contact Us
Replacement Part Number	DMN3016LDN-7-FT
