Home / Products / Filters / EMI/RFI Filters (LC, RC Networks) / ECLAMP2454P.TCT

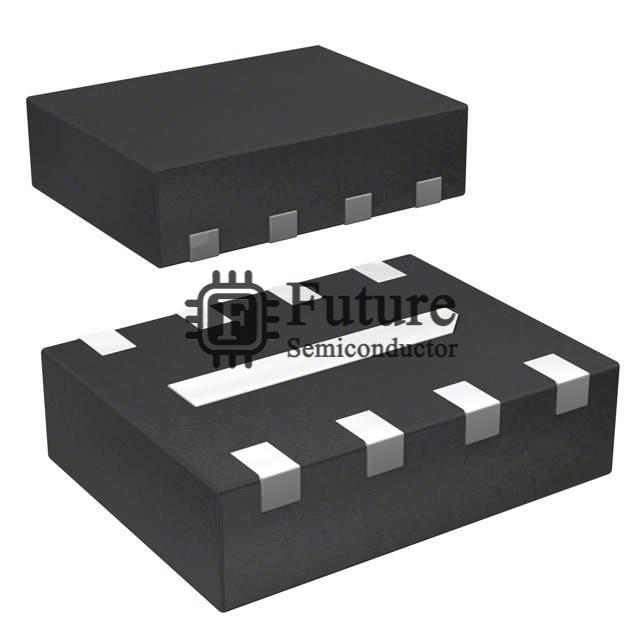

Semtech Corporation ECLAMP2454P.TCT
- MFG Part Number
- ECLAMP2454P.TCT
- Available Quantity
- 51260 Pieces
- Reference Price
- USD 0.39984
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Semtech Corporation
- Brief Description
- EMIClamp® FILTER LCPI 28NH/12PF ESD SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- EMI/RFI Filters (LC, RC Networks)
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- ECLAMP2454P.TCT.pdf
ECLAMP2454P.TCT Specifications
| Manufacturer Part Number | ECLAMP2454P.TCT |
|---|---|
| Future Part Number | FT-ECLAMP2454P.TCT |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | EMIClamp® |
| ECLAMP2454P.TCT Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Low Pass |
| Filter Order | 5th |
| Technology | LC (Pi) |
| Number of Channels | 4 |
| Center / Cutoff Frequency | 155MHz (Cutoff) |
| Attenuation Value | 40dB @ 800MHz ~ 2.7GHz |
| Resistance - Channel (Ohms) | 33 |
| Current | - |
| Values | L = 28nH, C = 12pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad |
| Size / Dimension | 0.083" L x 0.063" W (2.10mm x 1.60mm) |
| Height | 0.026" (0.65mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| ECLAMP2454P.TCT Weight | Contact Us |
| Replacement Part Number | ECLAMP2454P.TCT-FT |
