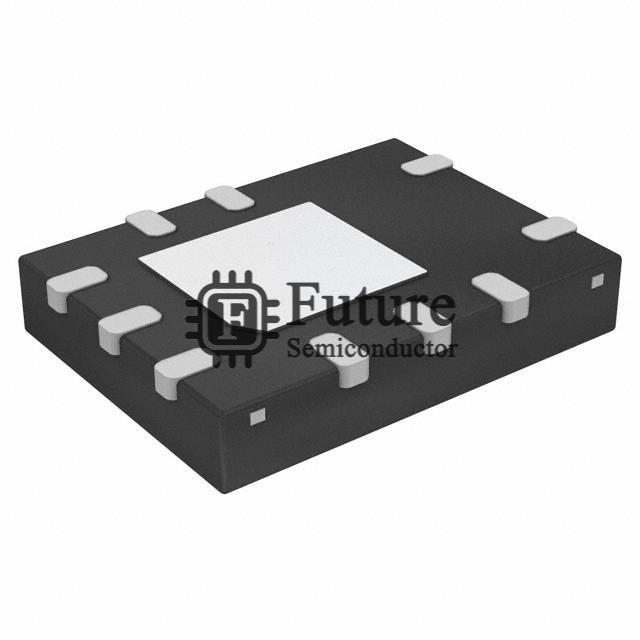

ON Semiconductor FAN501MPX

Name: FAN501MPX
Brand: ON Semiconductor
SKU: FAN501MPX
Price: 0.28 USD
Availability: InStock
Rating: 4.6 (603 reviews)

MFG Part Number: FAN501MPX

Available Quantity: 37220 Pieces

Reference Price: USD 0.28

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: WSaver® IC CTRLR DC-DC MULTIPH MLP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - AC DC Converters, Offline Switchers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: FAN501MPX.pdf

Request Quotation for FAN501MPX

Company Name

Contact Person

Phone Number

Address

Email

Message

FAN501MPX Specifications

Manufacturer Part Number	FAN501MPX
Future Part Number	FT-FAN501MPX
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	WSaver®
FAN501MPX Status (Lifecycle)	In Stock
Part Status	Active
Output Isolation	Isolated
Internal Switch(s)	No
Voltage - Breakdown	-
Topology	Flyback
Voltage - Start Up	17.5V
Voltage - Supply (Vcc/Vdd)	5.8V ~ 30V
Duty Cycle	68.5%
Frequency - Switching	85kHz ~ 140kHz
Power (Watts)	-
Fault Protection	Current Limiting, Over Temperature, Over Voltage
Control Features	-
Operating Temperature	-40°C ~ 125°C (TA)
Package / Case	10-WQFN Exposed Pad
Supplier Device Package	10-MLP (4x3)
Mounting Type	Surface Mount
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
FAN501MPX Weight	Contact Us
Replacement Part Number	FAN501MPX-FT
