Home / Products / Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single / FDFME2P823ZT

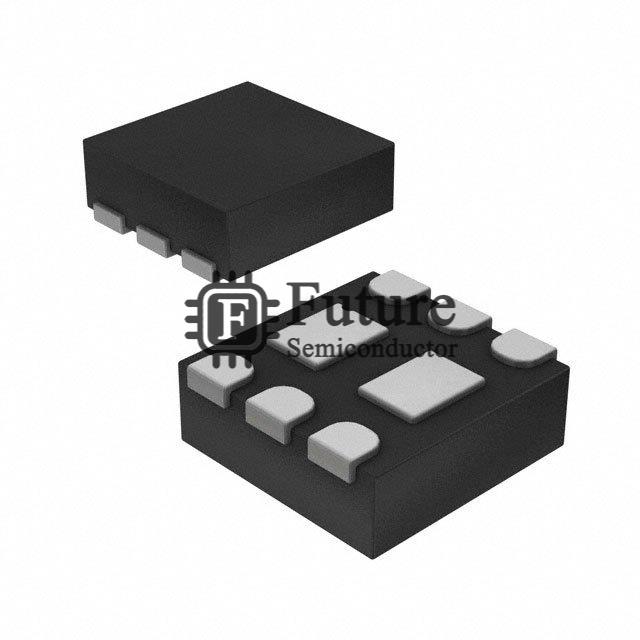

ON Semiconductor FDFME2P823ZT
- MFG Part Number
- FDFME2P823ZT
- Available Quantity
- 15950 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- ON Semiconductor
- Brief Description
- PowerTrench® MOSFET P-CH 20V 2.6A 6MICROFET
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- FDFME2P823ZT.pdf
FDFME2P823ZT Specifications
| Manufacturer Part Number | FDFME2P823ZT |
|---|---|
| Future Part Number | FT-FDFME2P823ZT |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PowerTrench® |
| FDFME2P823ZT Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 142 mOhm @ 2.3A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.7nC @ 4.5V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 405pF @ 10V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 1.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroFET (1.6x1.6) |
| Package / Case | 6-UFDFN Exposed Pad |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| FDFME2P823ZT Weight | Contact Us |
| Replacement Part Number | FDFME2P823ZT-FT |
