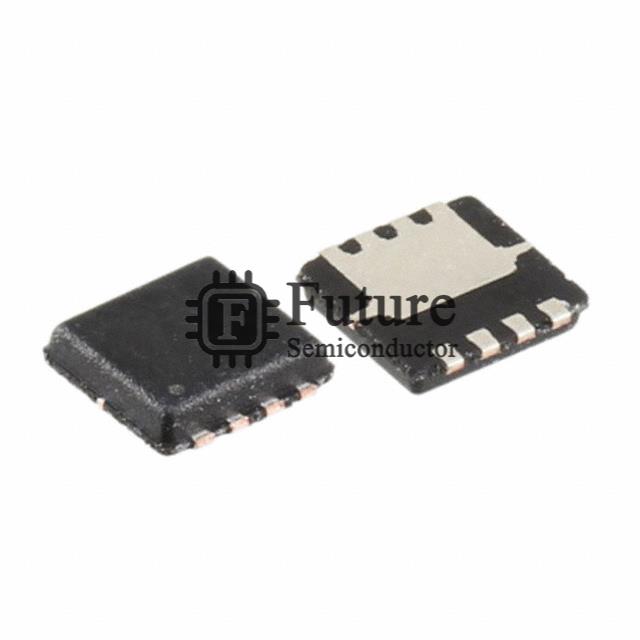

ON Semiconductor FDMC612PZ
- MFG Part Number
- FDMC612PZ
- Available Quantity
- 82680 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- ON Semiconductor
- Brief Description
- PowerTrench® MOSFET P-CH 20V 8-MLP
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- FDMC612PZ.pdf
FDMC612PZ Specifications
| Manufacturer Part Number | FDMC612PZ |
|---|---|
| Future Part Number | FT-FDMC612PZ |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PowerTrench® |
| FDMC612PZ Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 8.4 mOhm @ 14A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 74nC @ 4.5V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 7995pF @ 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta), 26W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| FDMC612PZ Weight | Contact Us |
| Replacement Part Number | FDMC612PZ-FT |
