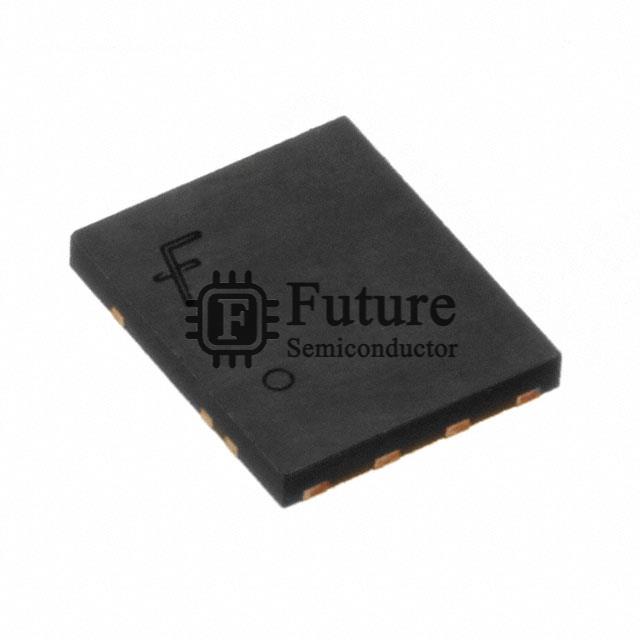

ON Semiconductor FDMD86100

Name: FDMD86100
Brand: ON Semiconductor
SKU: FDMD86100
Price: 1.232784 USD
Availability: InStock
Rating: 4.8 (87 reviews)

MFG Part Number: FDMD86100

Available Quantity: 55960 Pieces

Reference Price: USD 1.232784

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: PowerTrench® MOSFET 2N-CH 100V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: FDMD86100.pdf

Request Quotation for FDMD86100

Company Name

Contact Person

Phone Number

Address

Email

Message

FDMD86100 Specifications

Manufacturer Part Number	FDMD86100
Future Part Number	FT-FDMD86100
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PowerTrench®
FDMD86100 Status (Lifecycle)	In Stock
Part Status	Active
FET Type	2 N-Channel (Dual) Common Source
FET Feature	Standard
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	10A
Rds On (Max) @ Id, Vgs	10.5 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	2060pF @ 50V
Power - Max	2.2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-Power 5x6
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
FDMD86100 Weight	Contact Us
Replacement Part Number	FDMD86100-FT
