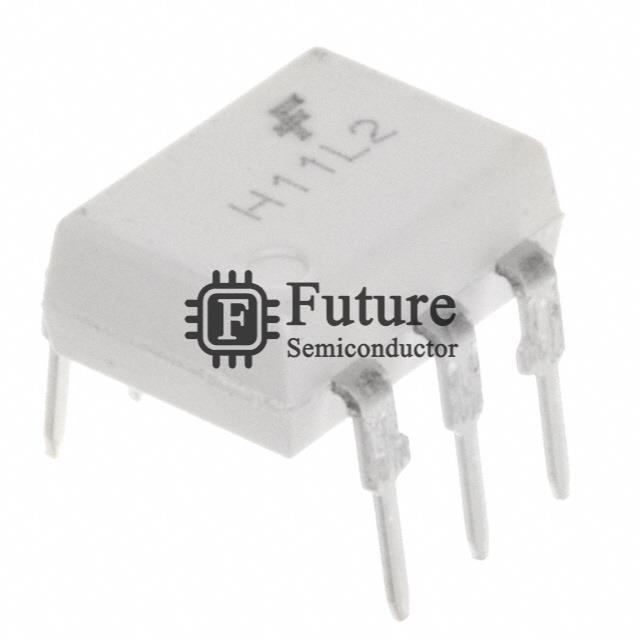

ON Semiconductor H11L2M

Name: H11L2M
Brand: ON Semiconductor
SKU: H11L2M
Price: 1.136 USD
Availability: InStock
Rating: 4.8 (385 reviews)

MFG Part Number: H11L2M

Available Quantity: 76150 Pieces

Reference Price: USD 1.136

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - OPTOISO 4.17KV OPN COLL 6DIP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Logic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: H11L2M.pdf

Request Quotation for H11L2M

Company Name

Contact Person

Phone Number

Address

Email

Message

H11L2M Specifications

Manufacturer Part Number	H11L2M
Future Part Number	FT-H11L2M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
H11L2M Status (Lifecycle)	In Stock
Part Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	4170Vrms
Common Mode Transient Immunity (Min)	-
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	50mA
Data Rate	1MHz
Propagation Delay tpLH / tpHL (Max)	4µs, 4µs
Rise / Fall Time (Typ)	100ns, 100ns
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	30mA
Voltage - Supply	3V ~ 15V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
H11L2M Weight	Contact Us
Replacement Part Number	H11L2M-FT
