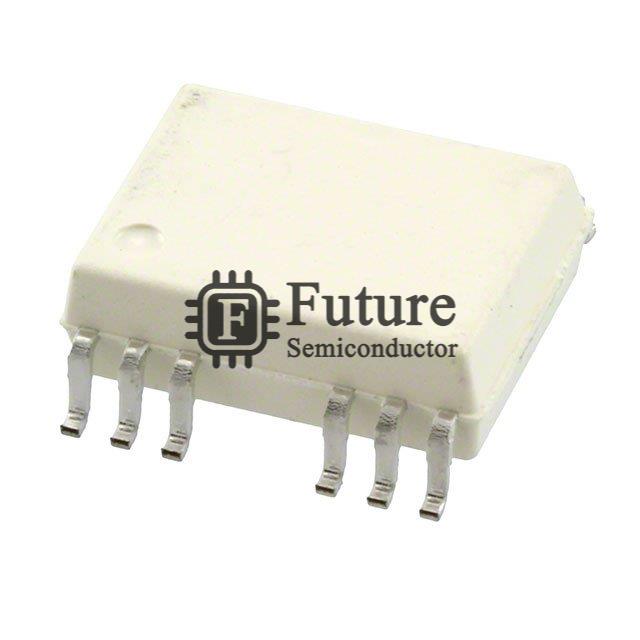

Broadcom Limited HCPL-314J-000E

Name: HCPL-314J-000E
Brand: Broadcom Limited
SKU: HCPL-314J-000E
Price: 3.512 USD
Availability: InStock
Rating: 4.9 (172 reviews)

MFG Part Number: HCPL-314J-000E

Available Quantity: 69130 Pieces

Reference Price: USD 3.512

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Broadcom Limited

Brief Description: - OPTOISO 5KV 2CH GATE DRIVER 16SO

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Isolators - Gate Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HCPL-314J-000E.pdf

Request Quotation for HCPL-314J-000E

Company Name

Contact Person

Phone Number

Address

Email

Message

HCPL-314J-000E Specifications

Manufacturer Part Number	HCPL-314J-000E
Future Part Number	FT-HCPL-314J-000E
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
HCPL-314J-000E Status (Lifecycle)	In Stock
Part Status	Active
Technology	Optical Coupling
Number of Channels	2
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Propagation Delay tpLH / tpHL (Max)	700ns, 700ns
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	50ns, 50ns
Current - Output High, Low	500mA, -
Current - Peak Output	600mA
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	10V ~ 30V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SO
Approvals	CSA, IEC/EN/DIN, UR
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HCPL-314J-000E Weight	Contact Us
Replacement Part Number	HCPL-314J-000E-FT
