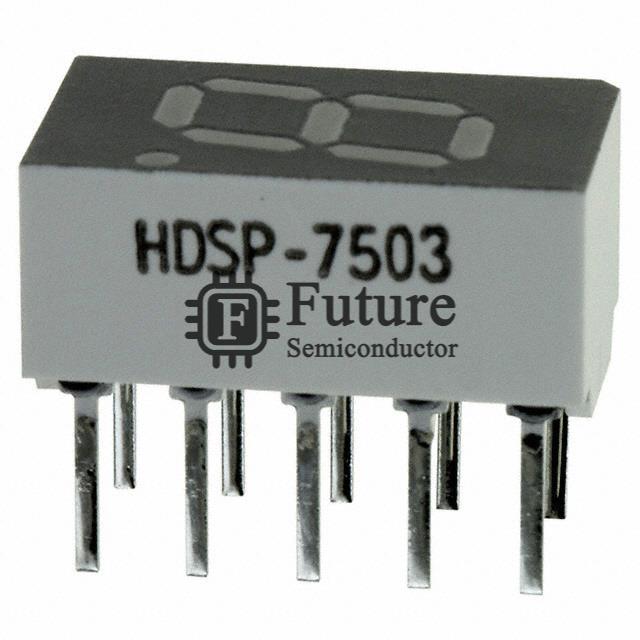

Broadcom Limited HDSP-7503

Name: HDSP-7503
Brand: Broadcom Limited
SKU: HDSP-7503
Price: 2.664 USD
Availability: InStock
Rating: 5.0 (605 reviews)

MFG Part Number: HDSP-7503

Available Quantity: 70210 Pieces

Reference Price: USD 2.664

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Broadcom Limited

Brief Description: - LED 7-SEG 7.6MM CC HE RED RHD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Display Modules - LED Character and Numeric

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HDSP-7503.pdf

Request Quotation for HDSP-7503

Company Name

Contact Person

Phone Number

Address

Email

Message

HDSP-7503 Specifications

Manufacturer Part Number	HDSP-7503
Future Part Number	FT-HDSP-7503
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
HDSP-7503 Status (Lifecycle)	In Stock
Part Status	Active
Display Format	-
Number of Characters	1
Size / Dimension	0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)
Digit/Alpha Size	0.30" (7.62mm)
Display Type	7-Segment
Common Pin	Common Cathode
Color	Red
Voltage - Forward (Vf) (Typ)	2V
Current - Test	20mA
Millicandela Rating	5.39mcd
Wavelength - Peak	635nm
Power Dissipation (Max)	105mW
Package / Case	10-DIP (0.200", 5.08mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HDSP-7503 Weight	Contact Us
Replacement Part Number	HDSP-7503-FT
