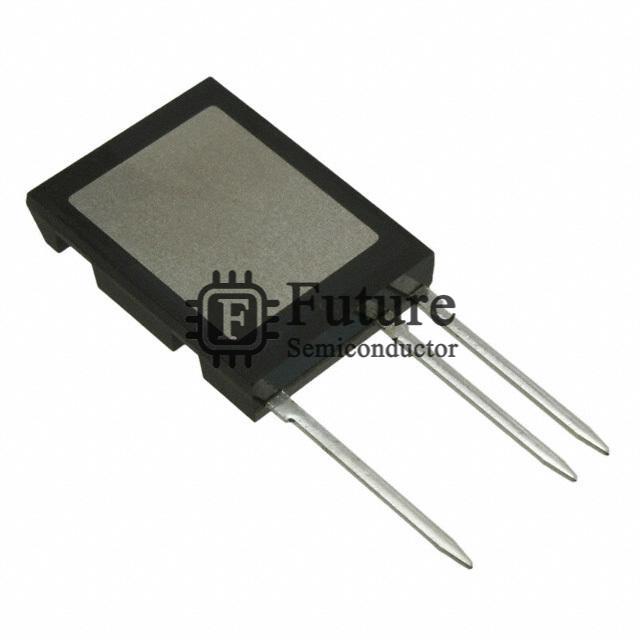

IXYS IXBL60N360

Name: IXBL60N360
Brand: IXYS
SKU: IXBL60N360
Price: 68.528 USD
Availability: InStock
Rating: 4.9 (29 reviews)

MFG Part Number: IXBL60N360

Available Quantity: 22310 Pieces

Reference Price: USD 68.528

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: IXYS

Brief Description: BIMOSFET™ IGBT 3600V 92A ISOPLUS I5PAK

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - IGBTs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: IXBL60N360.pdf

Request Quotation for IXBL60N360

Company Name

Contact Person

Phone Number

Address

Email

Message

IXBL60N360 Specifications

Manufacturer Part Number	IXBL60N360
Future Part Number	FT-IXBL60N360
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	BIMOSFET™
IXBL60N360 Status (Lifecycle)	In Stock
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	3600V
Current - Collector (Ic) (Max)	92A
Current - Collector Pulsed (Icm)	720A
Vce(on) (Max) @ Vge, Ic	3.4V @ 15V, 60A
Power - Max	417W
Switching Energy	-
Input Type	Standard
Gate Charge	450nC
Td (on/off) @ 25°C	50ns/340ns
Test Condition	960V, 60A, 4.7 Ohm, 15V
Reverse Recovery Time (trr)	1.95µs
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	ISOPLUSi5-Pak™
Supplier Device Package	ISOPLUSi5-Pak™
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
IXBL60N360 Weight	Contact Us
Replacement Part Number	IXBL60N360-FT
