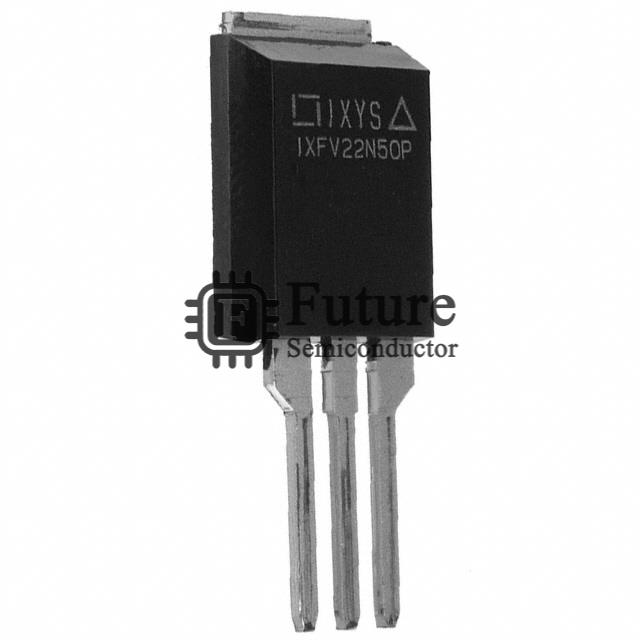

IXYS IXFV22N50P

Name: IXFV22N50P
Brand: IXYS
SKU: IXFV22N50P
Availability: InStock
Rating: 4.7 (355 reviews)

MFG Part Number: IXFV22N50P

Available Quantity: 62380 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: IXYS

Brief Description: HiPerFET™, PolarHT™ MOSFET N-CH 500V 22A PLUS220

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: IXFV22N50P.pdf

Request Quotation for IXFV22N50P

Company Name

Contact Person

Phone Number

Address

Email

Message

IXFV22N50P Specifications

Manufacturer Part Number	IXFV22N50P
Future Part Number	FT-IXFV22N50P
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	HiPerFET™, PolarHT™
IXFV22N50P Status (Lifecycle)	In Stock
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	270 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id	5.5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs	50nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2630pF @ 25V
FET Feature	-
Power Dissipation (Max)	350W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PLUS220
Package / Case	TO-220-3, Short Tab
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
IXFV22N50P Weight	Contact Us
Replacement Part Number	IXFV22N50P-FT
