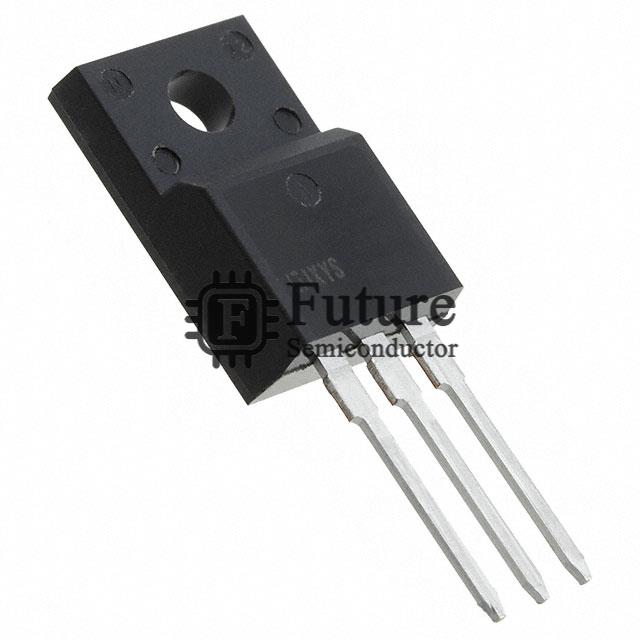

IXYS IXYP20N65C3D1M

Name: IXYP20N65C3D1M
Brand: IXYS
SKU: IXYP20N65C3D1M
Price: 2.016 USD
Availability: InStock
Rating: 4.7 (769 reviews)

MFG Part Number: IXYP20N65C3D1M

Available Quantity: 11330 Pieces

Reference Price: USD 2.016

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: IXYS

Brief Description: GenX3™, XPT™ IGBT 650V 18A 50W TO220

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - IGBTs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: IXYP20N65C3D1M.pdf

Request Quotation for IXYP20N65C3D1M

Company Name

Contact Person

Phone Number

Address

Email

Message

IXYP20N65C3D1M Specifications

Manufacturer Part Number	IXYP20N65C3D1M
Future Part Number	FT-IXYP20N65C3D1M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	GenX3™, XPT™
IXYP20N65C3D1M Status (Lifecycle)	In Stock
Part Status	Active
IGBT Type	PT
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	18A
Current - Collector Pulsed (Icm)	105A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 20A
Power - Max	50W
Switching Energy	430µJ (on), 350µJ (off)
Input Type	Standard
Gate Charge	30nC
Td (on/off) @ 25°C	19ns/80ns
Test Condition	400V, 20A, 20 Ohm, 15V
Reverse Recovery Time (trr)	30ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
IXYP20N65C3D1M Weight	Contact Us
Replacement Part Number	IXYP20N65C3D1M-FT
