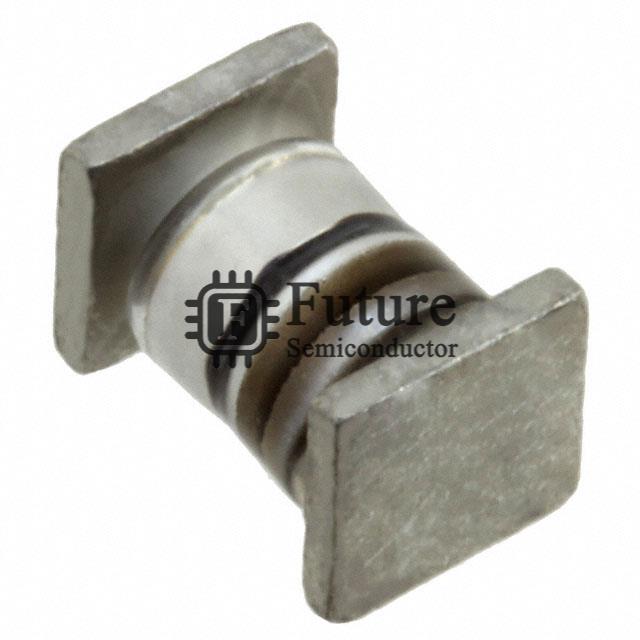

Microsemi Corporation JAN1N5554US

Name: JAN1N5554US
Brand: Microsemi Corporation
SKU: JAN1N5554US
Price: 10.50192 USD
Availability: InStock
Rating: 4.8 (725 reviews)

MFG Part Number: JAN1N5554US

Available Quantity: 83200 Pieces

Reference Price: USD 10.50192

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: Military, MIL-PRF-19500/420 DIODE GEN PURP 1KV 5A D5B

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JAN1N5554US.pdf

Request Quotation for JAN1N5554US

Company Name

Contact Person

Phone Number

Address

Email

Message

JAN1N5554US Specifications

Manufacturer Part Number	JAN1N5554US
Future Part Number	FT-JAN1N5554US
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-PRF-19500/420
JAN1N5554US Status (Lifecycle)	In Stock
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 9A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	1µA @ 1000V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	SQ-MELF, B
Supplier Device Package	D-5B
Operating Temperature - Junction	-65°C ~ 175°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JAN1N5554US Weight	Contact Us
Replacement Part Number	JAN1N5554US-FT
