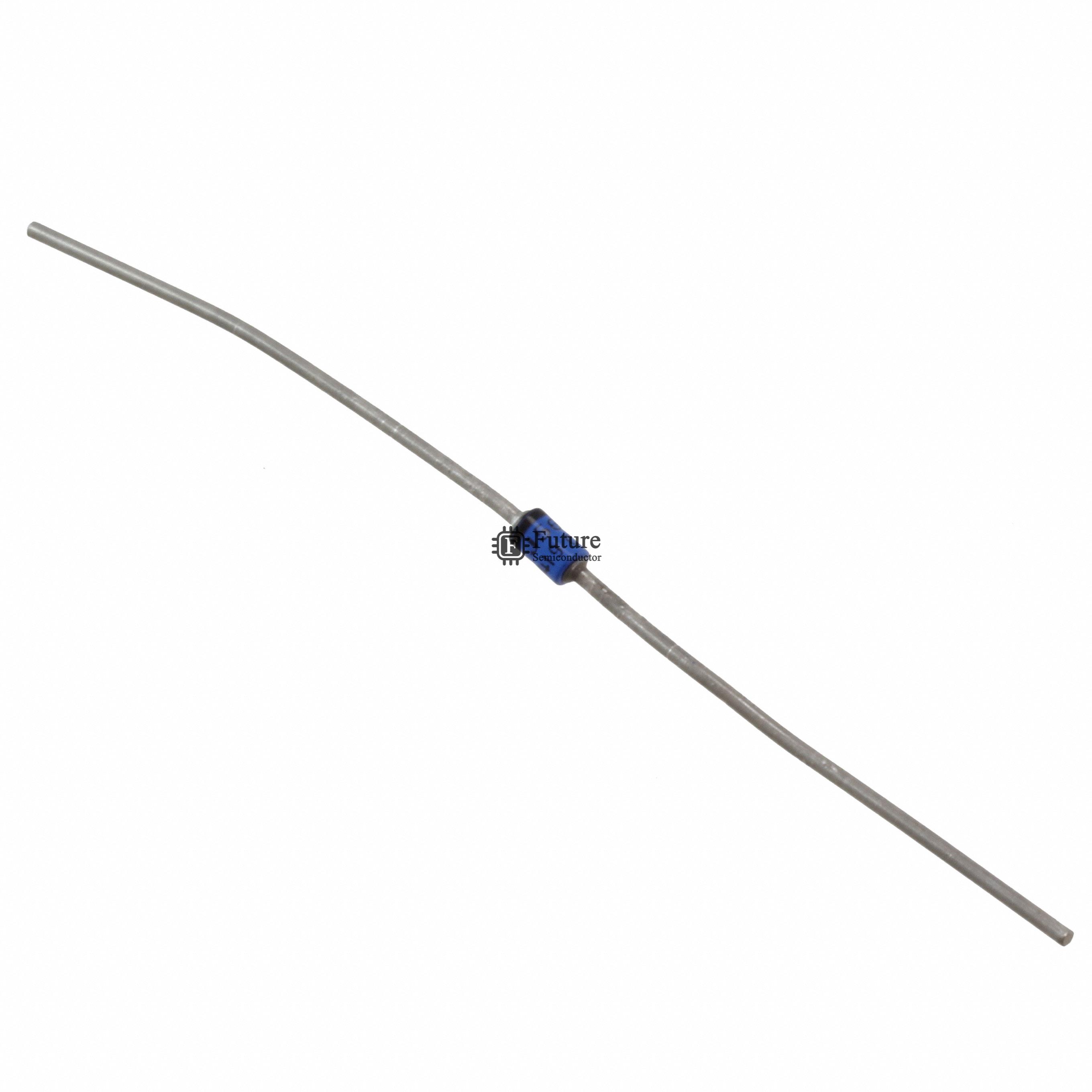

Microsemi Corporation JAN1N5620

Name: JAN1N5620
Brand: Microsemi Corporation
SKU: JAN1N5620
Price: 6.23524 USD
Availability: InStock
Rating: 4.6 (599 reviews)

MFG Part Number: JAN1N5620

Available Quantity: 60750 Pieces

Reference Price: USD 6.23524

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: Military, MIL-PRF-19500/427 DIODE GEN PURP 800V 1A AXIAL

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JAN1N5620.pdf

Request Quotation for JAN1N5620

Company Name

Contact Person

Phone Number

Address

Email

Message

JAN1N5620 Specifications

Manufacturer Part Number	JAN1N5620
Future Part Number	FT-JAN1N5620
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-PRF-19500/427
JAN1N5620 Status (Lifecycle)	In Stock
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 3A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2µs
Current - Reverse Leakage @ Vr	500nA @ 800V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	A, Axial
Supplier Device Package	-
Operating Temperature - Junction	-65°C ~ 200°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JAN1N5620 Weight	Contact Us
Replacement Part Number	JAN1N5620-FT
