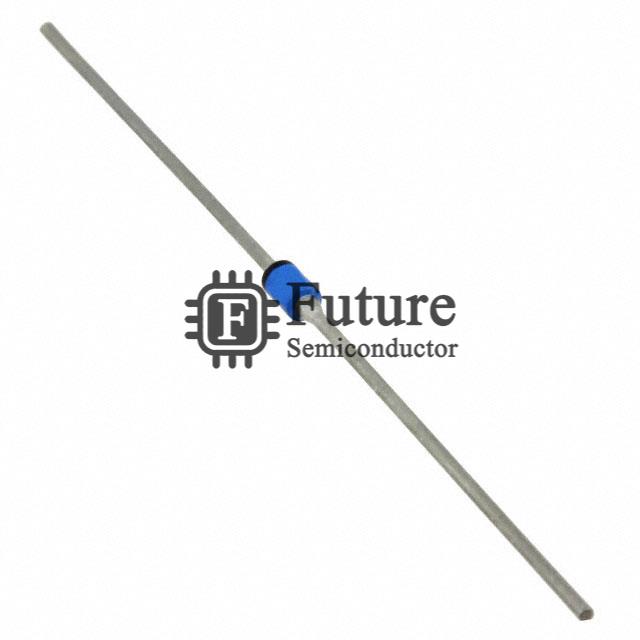

Microsemi Corporation JANTX1N4248

Name: JANTX1N4248
Brand: Microsemi Corporation
SKU: JANTX1N4248
Price: 10.08 USD
Availability: InStock
Rating: 4.9 (779 reviews)

MFG Part Number: JANTX1N4248

Available Quantity: 11090 Pieces

Reference Price: USD 10.08

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: Military, MIL-PRF-19500/286 DIODE GEN PURP 800V 1A E3

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JANTX1N4248.pdf

Request Quotation for JANTX1N4248

Company Name

Contact Person

Phone Number

Address

Email

Message

JANTX1N4248 Specifications

Manufacturer Part Number	JANTX1N4248
Future Part Number	FT-JANTX1N4248
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-PRF-19500/286
JANTX1N4248 Status (Lifecycle)	In Stock
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 3A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	5µs
Current - Reverse Leakage @ Vr	1µA @ 800V
Capacitance @ Vr, F	-
Mounting Type	-
Package / Case	E3
Supplier Device Package	E3
Operating Temperature - Junction	-65°C ~ 175°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JANTX1N4248 Weight	Contact Us
Replacement Part Number	JANTX1N4248-FT
