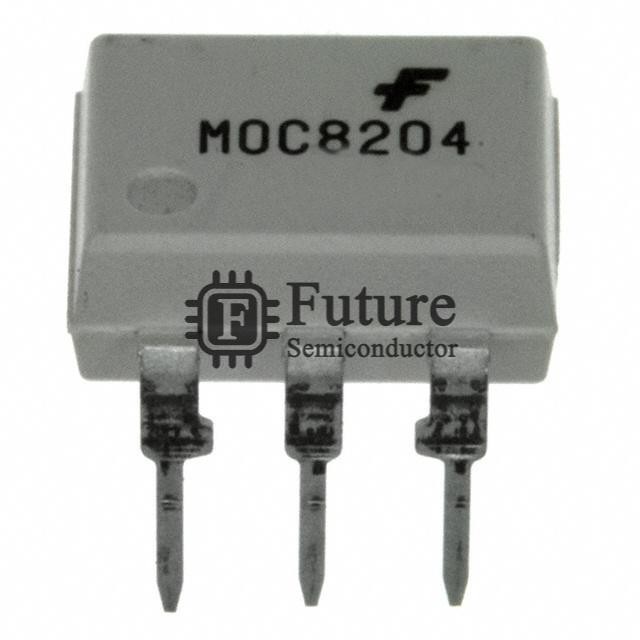

ON Semiconductor MOC8204M

Name: MOC8204M
Brand: ON Semiconductor
SKU: MOC8204M
Price: 1.144 USD
Availability: InStock
Rating: 4.7 (586 reviews)

MFG Part Number: MOC8204M

Available Quantity: 44740 Pieces

Reference Price: USD 1.144

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - OPTOISO 4.17KV TRANS W/BASE 6DIP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: MOC8204M.pdf

Request Quotation for MOC8204M

Company Name

Contact Person

Phone Number

Address

Email

Message

MOC8204M Specifications

Manufacturer Part Number	MOC8204M
Future Part Number	FT-MOC8204M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
MOC8204M Status (Lifecycle)	In Stock
Part Status	Active
Number of Channels	1
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 5µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base
Voltage - Output (Max)	400V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	80mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
MOC8204M Weight	Contact Us
Replacement Part Number	MOC8204M-FT
