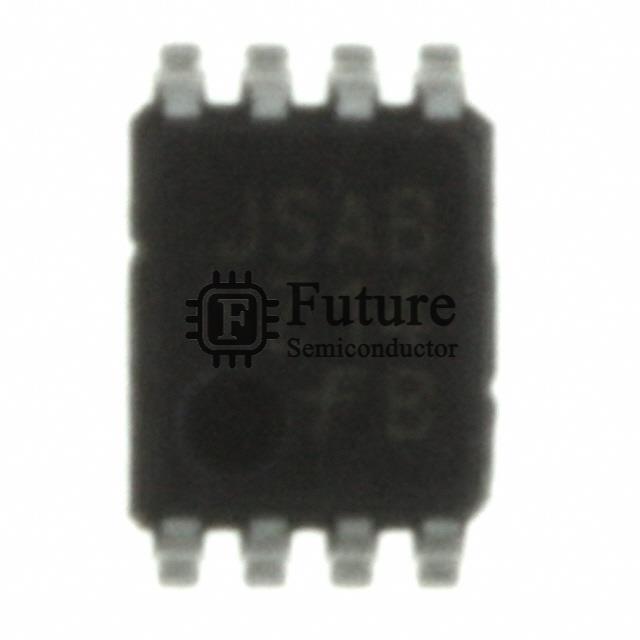

ON Semiconductor NC7NZ14K8X

Name: NC7NZ14K8X
Brand: ON Semiconductor
SKU: NC7NZ14K8X
Price: 0.111408 USD
Availability: InStock
Rating: 4.7 (349 reviews)

MFG Part Number: NC7NZ14K8X

Available Quantity: 35020 Pieces

Reference Price: USD 0.111408

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: 7NZ IC INVERTER SCHMITT 3CH US8

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Logic - Gates and Inverters

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NC7NZ14K8X.pdf

Request Quotation for NC7NZ14K8X

Company Name

Contact Person

Phone Number

Address

Email

Message

NC7NZ14K8X Specifications

Manufacturer Part Number	NC7NZ14K8X
Future Part Number	FT-NC7NZ14K8X
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	7NZ
NC7NZ14K8X Status (Lifecycle)	In Stock
Part Status	Active
Logic Type	Inverter
Number of Circuits	3
Number of Inputs	3
Features	Schmitt Trigger
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	1µA
Current - Output High, Low	32mA, 32mA
Logic Level - Low	0.25V ~ 1.2V
Logic Level - High	1.5V ~ 3.6V
Max Propagation Delay @ V, Max CL	5.9ns @ 5V, 50pF
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Supplier Device Package	US8
Package / Case	8-VFSOP (0.091", 2.30mm Width)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NC7NZ14K8X Weight	Contact Us
Replacement Part Number	NC7NZ14K8X-FT
