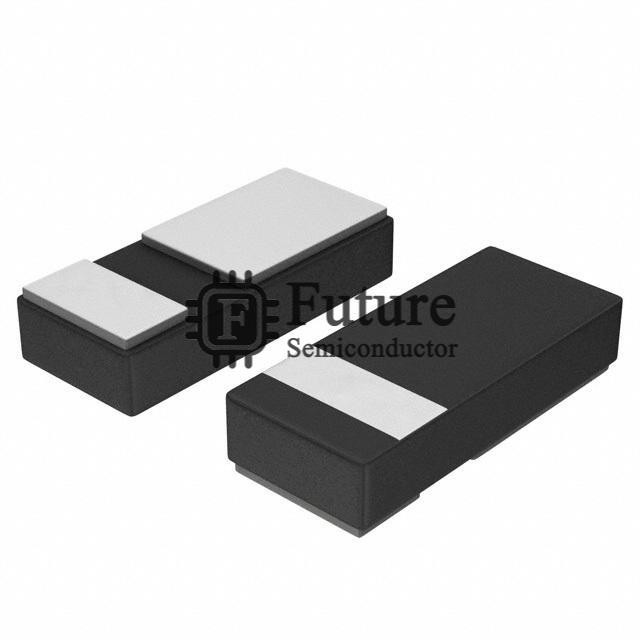

ON Semiconductor NSR10F30QNXT5G

Name: NSR10F30QNXT5G
Brand: ON Semiconductor
SKU: NSR10F30QNXT5G
Availability: InStock
Rating: 4.8 (265 reviews)

MFG Part Number: NSR10F30QNXT5G

Available Quantity: 54880 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - DIODE SCHOTTKY 30V 1A 2DSN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NSR10F30QNXT5G.pdf

Request Quotation for NSR10F30QNXT5G

Company Name

Contact Person

Phone Number

Address

Email

Message

NSR10F30QNXT5G Specifications

Manufacturer Part Number	NSR10F30QNXT5G
Future Part Number	FT-NSR10F30QNXT5G
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
NSR10F30QNXT5G Status (Lifecycle)	In Stock
Part Status	Obsolete
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1A (DC)
Voltage - Forward (Vf) (Max) @ If	470mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	100µA @ 30V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	2-XDFN
Supplier Device Package	2-DSN (1.4x0.6)
Operating Temperature - Junction	-55°C ~ 125°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NSR10F30QNXT5G Weight	Contact Us
Replacement Part Number	NSR10F30QNXT5G-FT
