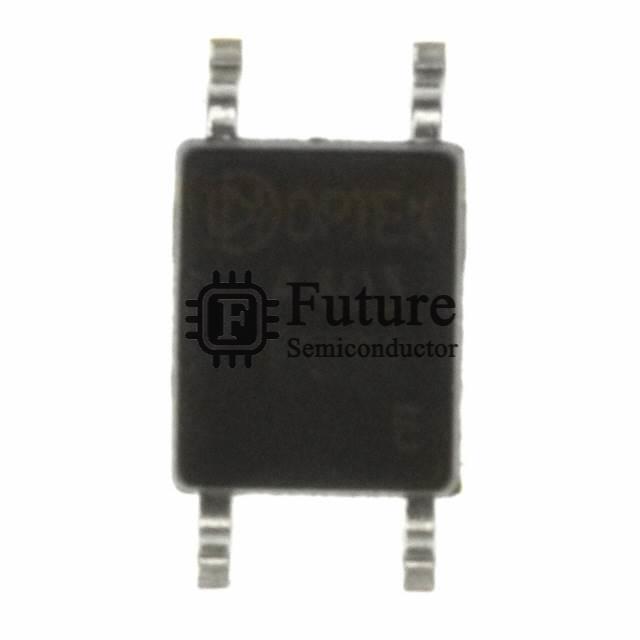

TT Electronics/Optek Technology OPIA403BTU

Name: OPIA403BTU
Brand: TT Electronics/Optek Technology
SKU: OPIA403BTU
Availability: InStock
Rating: 4.8 (681 reviews)

MFG Part Number: OPIA403BTU

Available Quantity: 75820 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TT Electronics/Optek Technology

Brief Description: - OPTOISO 3.75KV DARLINGTON 4SOP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: OPIA403BTU.pdf

Request Quotation for OPIA403BTU

Company Name

Contact Person

Phone Number

Address

Email

Message

OPIA403BTU Specifications

Manufacturer Part Number	OPIA403BTU
Future Part Number	FT-OPIA403BTU
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
OPIA403BTU Status (Lifecycle)	In Stock
Part Status	Obsolete
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	600% @ 1mA
Current Transfer Ratio (Max)	7500% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	60µs, 53µs
Input Type	DC
Output Type	Darlington
Voltage - Output (Max)	35V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50mA
Vce Saturation (Max)	1V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOP (2.54mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
OPIA403BTU Weight	Contact Us
Replacement Part Number	OPIA403BTU-FT
