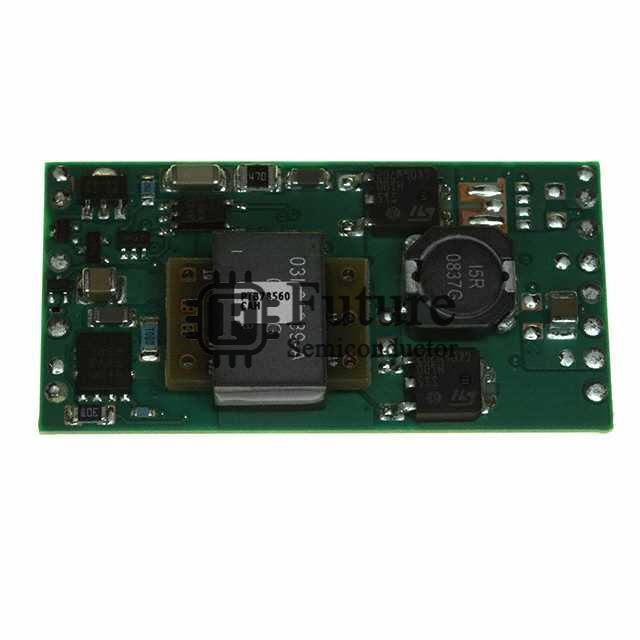

Texas Instruments PTB78560CAH

Name: PTB78560CAH
Brand: Texas Instruments
SKU: PTB78560CAH
Price: 48.88 USD
Availability: InStock
Rating: 4.6 (345 reviews)

MFG Part Number: PTB78560CAH

Available Quantity: 48570 Pieces

Reference Price: USD 48.88

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Texas Instruments

Brief Description: PTB78560 (30W) DC DC CONVERTER 9-13.2V 30W

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: DC DC Converters

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PTB78560CAH.pdf

Request Quotation for PTB78560CAH

Company Name

Contact Person

Phone Number

Address

Email

Message

PTB78560CAH Specifications

Manufacturer Part Number	PTB78560CAH
Future Part Number	FT-PTB78560CAH
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PTB78560 (30W)
PTB78560CAH Status (Lifecycle)	In Stock
Part Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	60V
Voltage - Output 1	9 ~ 13.2V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	2.5A
Power (Watts)	30W
Voltage - Isolation	1.5kV
Applications	ITE (Commercial)
Features	-
Operating Temperature	-40°C ~ 85°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	11-DIP Module
Size / Dimension	2.05" L x 1.05" W x 0.39" H (52.1mm x 26.7mm x 10.0mm)
Supplier Device Package	-
Control Features	-
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PTB78560CAH Weight	Contact Us
Replacement Part Number	PTB78560CAH-FT
