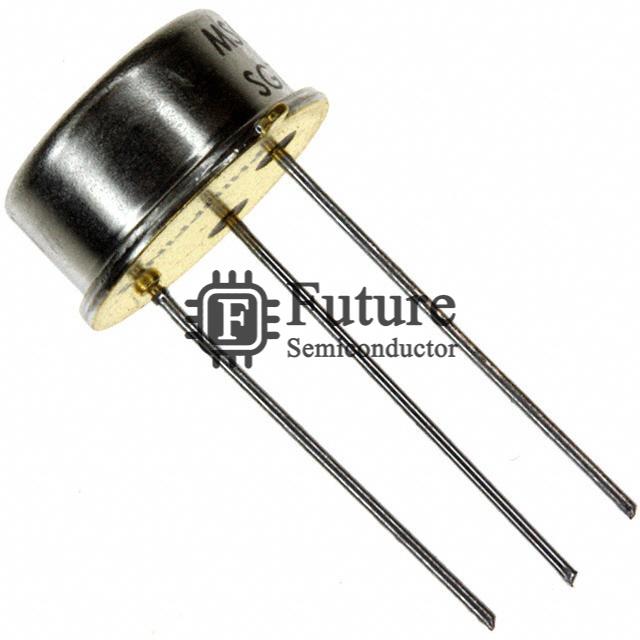

Microsemi Corporation SG7805AT

Name: SG7805AT
Brand: Microsemi Corporation
SKU: SG7805AT
Availability: InStock
Rating: 4.6 (683 reviews)

MFG Part Number: SG7805AT

Available Quantity: 39720 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: Military, MIL-STD-883 IC REG LINEAR 5V 1.5A TO39

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Voltage Regulators - Linear

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: SG7805AT.pdf

Request Quotation for SG7805AT

Company Name

Contact Person

Phone Number

Address

Email

Message

SG7805AT Specifications

Manufacturer Part Number	SG7805AT
Future Part Number	FT-SG7805AT
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-STD-883
SG7805AT Status (Lifecycle)	In Stock
Part Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	50V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	2.5V @ 500mA
Current - Output	1.5A
Current - Quiescent (Iq)	-
Current - Supply (Max)	7mA
PSRR	68dB (120Hz)
Control Features	Current Limit, Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
SG7805AT Weight	Contact Us
Replacement Part Number	SG7805AT-FT
