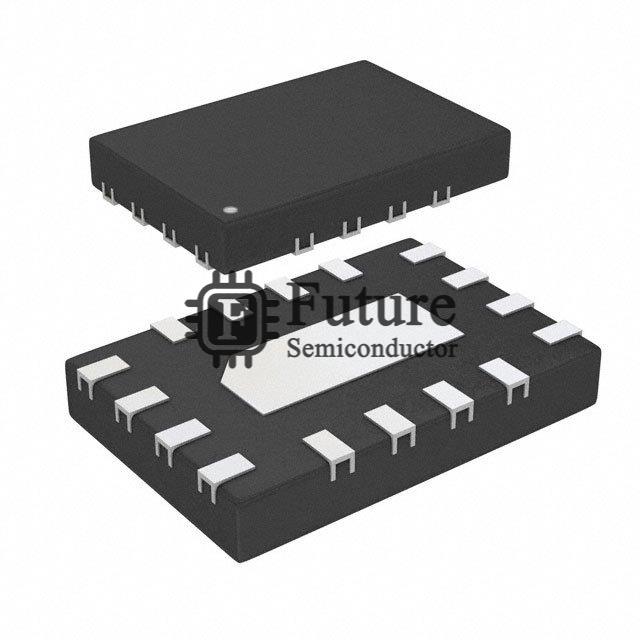

STMicroelectronics STG3693QTR

Name: STG3693QTR
Brand: STMicroelectronics
SKU: STG3693QTR
Price: 0.34832 USD
Availability: InStock
Rating: 4.7 (203 reviews)

MFG Part Number: STG3693QTR

Available Quantity: 32550 Pieces

Reference Price: USD 0.34832

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: STMicroelectronics

Brief Description: - IC SWITCH QUAD SPDT 16QFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Interface - Analog Switches, Multiplexers, Demultiplexers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: STG3693QTR.pdf

Request Quotation for STG3693QTR

Company Name

Contact Person

Phone Number

Address

Email

Message

STG3693QTR Specifications

Manufacturer Part Number	STG3693QTR
Future Part Number	FT-STG3693QTR
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
STG3693QTR Status (Lifecycle)	In Stock
Part Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	5.2 Ohm
Channel-to-Channel Matching (ΔRon)	300 mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	15ns, 5ns
-3db Bandwidth	800MHz
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-78dB @ 1MHz
Operating Temperature	-55°C ~ 125°C (TA)
Package / Case	16-UFQFN Exposed Pad
Supplier Device Package	16-QFN (2.6x1.8)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
STG3693QTR Weight	Contact Us
Replacement Part Number	STG3693QTR-FT
