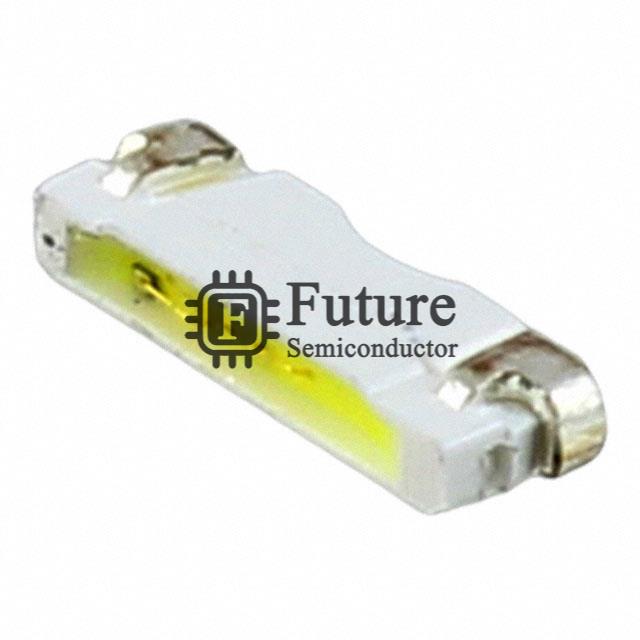

JKL Components Corp. ZSM-S3806-W

Name: ZSM-S3806-W
Brand: JKL Components Corp.
SKU: ZSM-S3806-W
Availability: InStock
Rating: 4.5 (630 reviews)

MFG Part Number: ZSM-S3806-W

Available Quantity: 78750 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: JKL Components Corp.

Brief Description: - LED WHITE DIFF SIDE LED SMD R/A

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: LED Indication - Discrete

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ZSM-S3806-W.pdf

Request Quotation for ZSM-S3806-W

Company Name

Contact Person

Phone Number

Address

Email

Message

ZSM-S3806-W Specifications

Manufacturer Part Number	ZSM-S3806-W
Future Part Number	FT-ZSM-S3806-W
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
ZSM-S3806-W Status (Lifecycle)	In Stock
Part Status	Obsolete
Color	White
Configuration	Standard
Lens Color	Yellow
Lens Transparency	Diffused
Millicandela Rating	1750mcd
Lens Style	Rectangle with Flat Top
Lens Size	-
Voltage - Forward (Vf) (Typ)	3.2V
Current - Test	20mA
Viewing Angle	120°
Mounting Type	Surface Mount, Right Angle
Wavelength - Dominant	-
Wavelength - Peak	-
Features	-
Package / Case	2-SMD, Boomerang
Supplier Device Package	Side View LED
Size / Dimension	3.80mm L x 1.20mm W
Height (Max)	0.60mm
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ZSM-S3806-W Weight	Contact Us
Replacement Part Number	ZSM-S3806-W-FT
