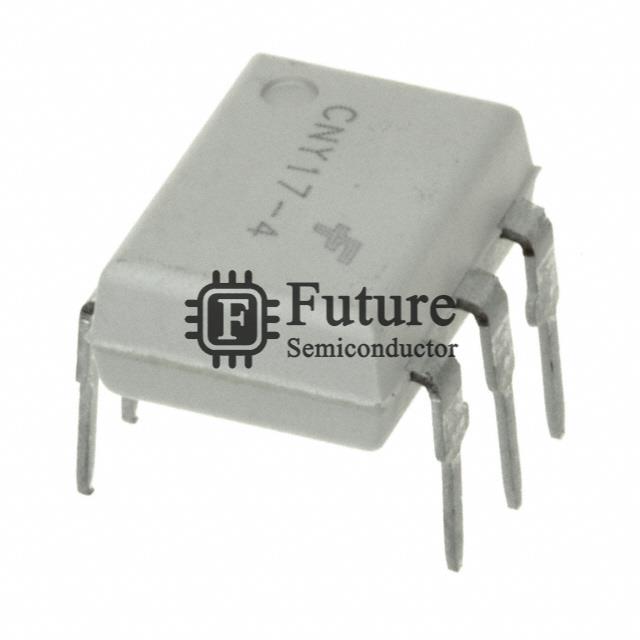

ON Semiconductor CNY174M

Name: CNY174M
Brand: ON Semiconductor
SKU: CNY174M
Price: 0.488 USD
Availability: InStock
Rating: 4.6 (740 reviews)

MFG Part Number: CNY174M

Available Quantity: 88880 Pieces

Reference Price: USD 0.488

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - OPTOISO 4.17KV TRANS W/BASE 6DIP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CNY174M.pdf

Request Quotation for CNY174M

Company Name

Contact Person

Phone Number

Address

Email

Message

CNY174M Specifications

Manufacturer Part Number	CNY174M
Future Part Number	FT-CNY174M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
CNY174M Status (Lifecycle)	In Stock
Part Status	Active
Number of Channels	1
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	160% @ 10mA
Current Transfer Ratio (Max)	320% @ 10mA
Turn On / Turn Off Time (Typ)	2µs, 3µs
Rise / Fall Time (Typ)	4µs, 3.5µs (Max)
Input Type	DC
Output Type	Transistor with Base
Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.35V
Current - DC Forward (If) (Max)	60mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CNY174M Weight	Contact Us
Replacement Part Number	CNY174M-FT
